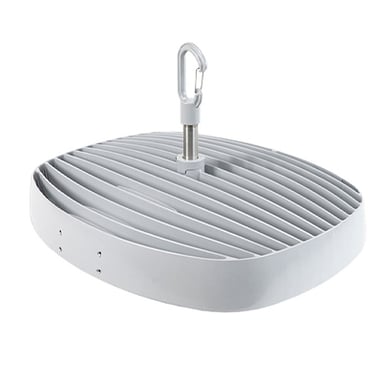

Featuring: AR 10,000 – 33,000 Lumen Lighting Fixture with Hook Pendant Mount.
- Voltage options are 120-277 VAC (50/60 Hz) or 347-480 VAC (50/60 Hz)
- Multiple optical distribution patterns for superior lighting quality
- Ambient temperature range is -40°C to +55°C
- Ingress protection level is IP66/67
Meet Melissa, our Sales Manager. She and her team can assist with all lighting inquiries. They can be reached at: 1-877-636-2589

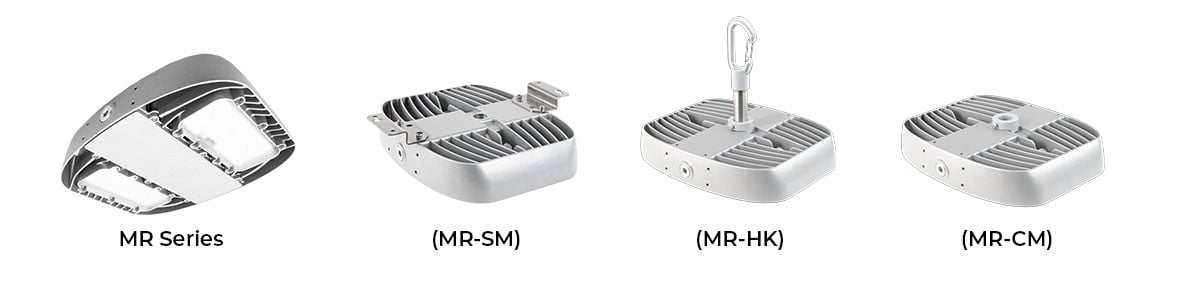

MR Series - 3,000 - 6,000 Lumen Multi-functional Luminaire
c/w Hook Pendant Mount (MR-HK)
4.6 kg | 10.4 lbs (mount excluded)
11.5in x 14.5in x 2.5in
• Designed for marine, harsh, and hazardous location use
• Wide range of optical distribution patterns for superior lighting quality
• Field serviceable light engines, power supply and housing elements
• Approved for through-wiring of multiple units on a single circuit
• Optimized thermal management for all electronics
• Built-in junction area for simplified termination
• 3 mounting options for deployment flexibility
Voltage: AC: 120-277 VAC (50/60 Hz) | HV: 347 VAC (50/60 Hz)
Ingress Protection: IP66 | IP67 | IP68 (General Location use only)
Temp Range: -40°C to +55°C
Certification: UL 844, UL 1598, UL 1598A & UL8750
CSA C22.2 No. 137, CSA C22.2 No. 250.0, CSA C22.2 No. 250.13;
Class I, Division 2, Groups ABCD, T4;
Class II, Division 2, Groups FG, T4A; Class III;

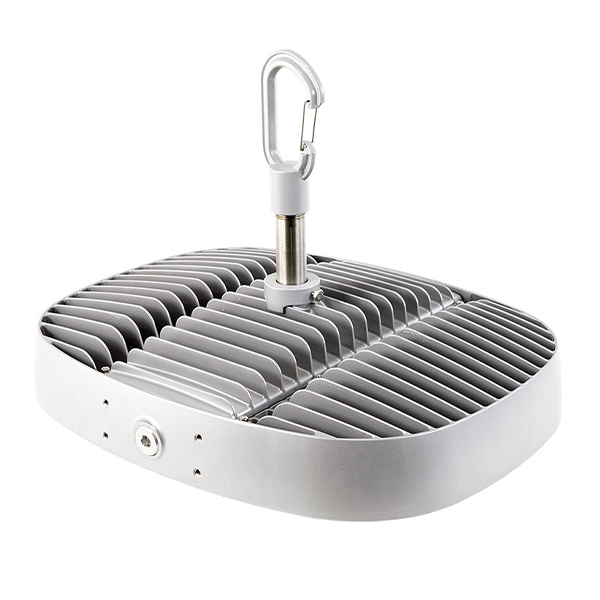

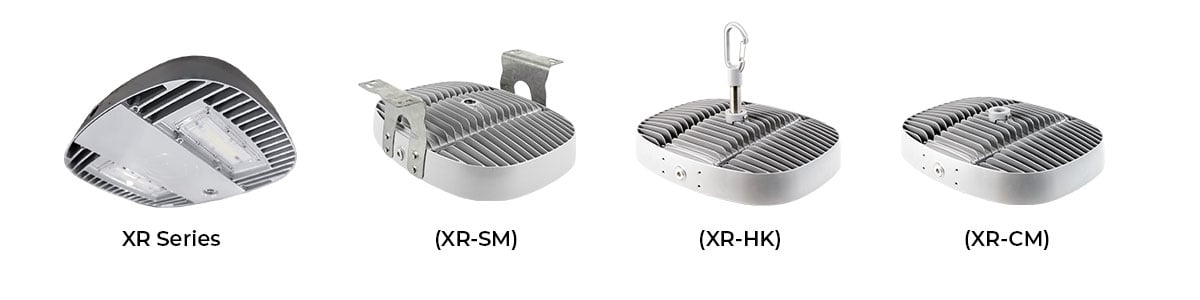

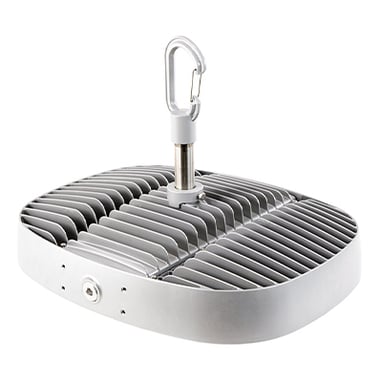

XR Series - 8,000 - 20,000 Lumen Multi-functional Luminaire
c/w Hook Pendant Mount (XR-HK)
8.1 kg | 17.8 lbs (mount excluded)
18.74in x 14.88in x 3.78in
• Designed for marine, harsh, and hazardous location use
• Thermal separation of LED and power supply allows max ambient temperatures
• Wide range of optical distribution patterns for superior lighting quality
• Field serviceable light engines, power supply and housing elements
• Approved for through-wiring of multiple units on a single circuit
• Optimized thermal management for all electronics
• Built-in junction area for simplified termination
• 4 mounting options for deployment flexibility
Voltage: AC: 120-277 VAC (50/60 Hz) | HV: 347-480 VAC (50/60 Hz)
Ingress Protection: IP66 | IP68 (General Location use only)
Temp Range: -50°C to +75°C
Certification: UL 844; UL 1598 & UL 1598A; UL 8750
CSA C22.2 No. 250.0-08, CSA C22.2 No. 250.13-17, CSA C22.2 No. 137.18;
Class I, Division 2 Groups ABCD / Class I, Zone 2, Groups IIC;
Class II Division 2 Groups FG / Class I, Zone 22, Groups IIIB; Class III

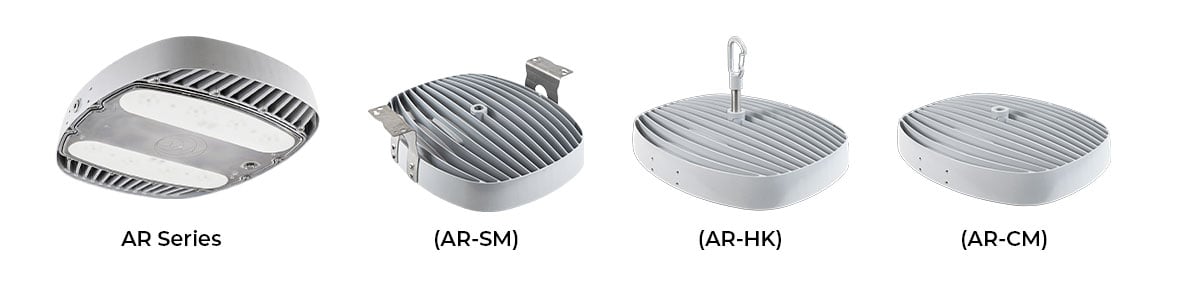

AR Series - 10,000 - 50,000 Lumen Multi-functional Luminaire
c/w Hook Pendant Mount (AR-HK)
16.4 kg | 36.0 lbs (mount excluded)
24.0in x 20.0in x 4.3in
• Designed for marine, harsh, NSF and hazardous location use
• Housing geometry and specialty powder coat prevents debris buildup and staining
• Wide range of optical distribution patterns for superior lighting quality
• Field serviceable light engines, power supply and housing elements
• Approved for through-wiring of multiple units on a single circuit
• Built-in junction area for simplified termination
• 4 mounting options for deployment flexibility
Voltage: AC: 120-277 VAC | HV: 347-480 VAC (50/60 Hz)
Ingress Protection: IP66 | IP67
Temp Range: -40°C to +55°C
Certification: UL 844; UL 1598 & UL 1598A; UL 8750
CSA C22.2 No. 137, CSA C22.2 No. 250.0, CSA C22.2 No. 250.13;
Class I, Division 2, Groups ABCD; | Class II, Division 2, Groups FG; Class III;
Class I, Zone 2, Groups IIC; | Class I, Zone 22, Groups IIIB;
NSF-2: Splash and Non-Food Zones;
