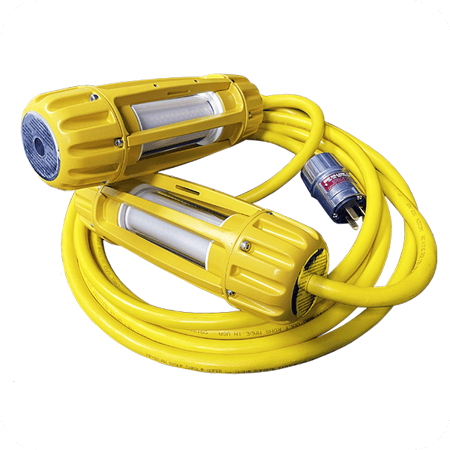

LS Series

1,500 Lumen per Module Stringer Light

Nemalux's LS is a temporary stringer light designed for harsh & hazardous locations use. String lengths reach 30 LED modules on one line or up to 300 feet.
LS Spec Sheet
LS Installation Manual
Image{width=600,height=600,url='https://22203464.fs1.hubspotusercontent-na1.net/hubfs/22203464/1-website-images/ls-series-images/600px-width/1-nemalux-ls-series-light-stringer-primary-image-600-png.png',altText='1-nemalux-ls-series-light-stringer-primary-image-600-png',fileId=183603768848}
  • Approved for use in hazardous locations.
  • Stringer light for temporary applications.
  • Ambient temperature range is -50°C to +70°C.
  • Input voltage options is 120 VAC +/- 10%.
  • Ingress protection level is IP66/67.

Fixture weight is 1.2 kg (2.6 lbs) per module.
Fixture weight including 10ft of cord is 1.6 kg (3.5 lbs) per module.

LS Part Number Builder LS Performance Spec

LS Product Specifications

Features:

  • Streamlined housing for quick installation and teardown.
  • Versatile mounting options for increased flexibility.
  • 360° light output provides up-light and down-light.
  • Field replaceable sub-assemblies and cable.

Module spacing of 8ft or less and a mounting height of 9ft or less achieves OSHA-recommended illumination levels of 5fc.

See LS Performance Spec.

LS Certifications and Safety Ratings

Certified for general and hazardous location use.

Certified to:

      • UL 1088, UL 1598, UL 1598A, CAN/ULC-S1088
      • CSA C22.2 No. 137.18

LS Safety Ratings:

    • Class I, Division 2, Groups ABCD, T5, -50°C Ta 70°C
    • Class II, Division 1, Groups EFG, T5, -50°C Ta 70°C
    • Class III; Zone 2, Zone 20, T5, -50°CTa 70°C

Nemalux designed the LS for temporary lighting applications in harsh and hazardous locations. The LS fixture is a stringer light available in several lengths and LED modules.

Here is a complete list of the LS's Performance Specs.

The streamlined body allows for easier routing and pulling around obstacles. While the durable powder-coated finish stands up to the rigors of daily use. The LS has an ingress protection rating of IP66/67.

Simple mounting options enable quick setup and teardown for temporary usage. The LS is a great fit for maintenance shutdown and turnaround.

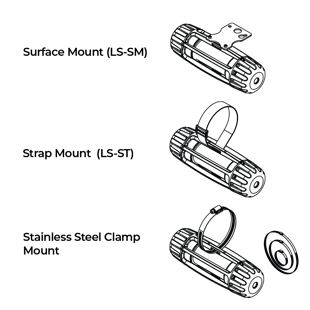

LS Product Mount

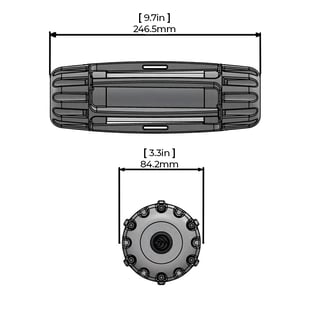

Nemalux LS Product Dimensions

LS Product Dimensions

Nemalux LS Product Dimensions
