  • Approved for use in general, marine, & hazardous locations.
  • Input voltage option for GS-AC is 120 VAC +/- 10%.
  • Input voltage options for GS-DC are 12 or 24 VDC.
  • Ambient temperature range is -40°C to +65°C.
  • Ingress protection level is IP66/67.

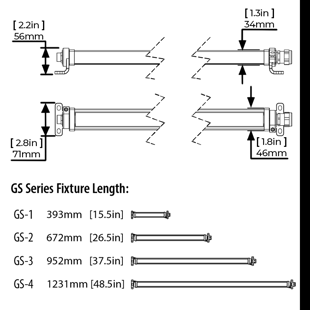

Fixture lengths are: GS-1: 15.5", GS-2: 26.5", GS-3: 37.5", GS-4: 48.5".
Fixture weights are: GS-1: 1.8 lbs., GS-2: 2.6 lbs., GS-3: 3.9 lbs., GS-4: 5.3 lbs.

GS Part Number Builder   GS Performance Spec

GS Product Specifications

Nemalux GS lights are compact and durable. Designed as a hazardous location strip light, the GS is a great option for enclosures. All variants are factory sealed and supplied with a 3ft flying lead. Suitable for outdoor and indoor applications. Standard mounting brackets allow for 360-degree articulation. The housing provides a full cutoff preventing light from hitting the operates eyes.

Features:

  • Designed for marine, harsh, and hazardous location use.
  • Optimized thermal management with extruded aluminum housing.
  • Type II anodized housing withstands exposure to certain chemicals.
  • Factory-sealed housing provided with 3ft cable and cable gland.
  • Vented enclosure to prevent stress on electronics and gaskets.
  • Lightweight housing for deployment in complex projects.
  • Adjustable mounting bracket allows for 360° rotation.

See GS Performance Spec.

GS Certifications and Safety Ratings

GS-DC Model

  • Certified for general and marine location use under: UL 1598, UL 2108 | CSA C22.2 No. 250.0
  • Certified for hazardous location use under: UL 844, UL 1598A | CSA C22.2 No. 137
  • Class I, Division 2, Groups ABCD, T4* |  Class II, Division 2, Groups FG, T4*  |  Class III  |  Class I, Zone 2, Group IIC  |  Zone 22

GS-AC Model

  • Certified for general and marine location use under:  UL 1598, UL 1598A, UL 8750 | CSA C22.2 No. 250.0 & No. 250.13
  • Certified for hazardous location use under:  UL 844 | CSA C22.2 No. 137
  • Class I, Division 2, Groups ABCD, T4*  |  Class II, Division 2, Groups FG, T4* | Class III | Class I, Zone 2, Group IIC | Zone 22 | *T3C for simultaneous exposure rating, Class I Div. 2 & Class II, Div. 2.

Effective Illumination for Industrial Applications

Optimized Lighting Effect

Durable and water-tight, the GS fixtures withstand exposure to demanding environments. Designed as a hazardous location LED linear strip light, the GS is a versatile fixture.

Protected Against the Elements

GS's housing consists of an extruded and type II anodized copper-free aluminum alloy. While the light-emitting surface is an impact-resistant polycarbonate lens. The pressure-equalized housing is suitable for indoor and outdoor environments. Without the potential of compromising sensitive electronics.

Dark Sky

The aluminum housing of the GS protrudes beyond the external lens to provide a full cut-off. Lighting target areas without the potential for undesirable glare and light pollution. Certain GS models with the surface mount bracket are dark sky (IDA) compliant.

Engineered for Extreme Environments

Light Fixture Performance

500 – 5,000 lumen output hazardous location linear LED light fixture. Here is a complete list of the GS's Performance Specs.

AC Direct and Linear DC Architecture

External or internal power supplies are not required for the GS-AC models. AC direct architecture of the internal light engine allows for 120 VAC input. High-speed cameras use GS-DC models with linear drivers and flicker-free illumination.

Superior Results

With over a decade of installation history, the GS is a unique light for special applications. Areas of use include but are not limited to industrial panels and enclosures. Mining equipment as well as small service tunnels. Marine vessels and military vehicles. Drilling and exploration equipment and much more. With AC and DC input options, the GS integrates into grid-tied or remote solar-powered sites.

Simplified Installation & Operation

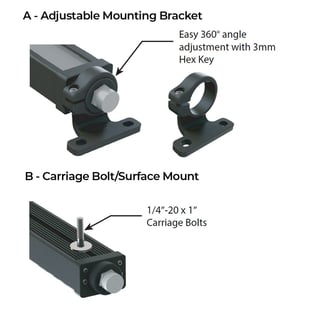

Installation Options

Field adjustable mounting brackets or carriage bolt surface mounts offer flexible deployment options. Standard brackets allow for easy field adjustable 360° rotation. The GS provides a long-term solution for linear strip lighting applications.

Implementation Areas

Areas of use include but are not limited to industrial panels and enclosures. Mining equipment as well as small service tunnels. Marine vessels and walkway bull rail lights. Military vehicles and aerospace test equipment. Drilling and exploration equipment and much more.

CASE STUDY using the GS Series:  Illuminating a Wind Tunnel for NASA

Extended Luminaire Life

The GS maintains optimal thermal performance even with exposure to elevated ambient temperatures. Excellent thermal management with the help of a streamlined circuit board and housing design.


GS Series -  IP68 Encapsulated Variant (GS-EN) ​nemalux-gs-series-led-encapsulated-floodlight-ip68-600

LED lights can face submersion for an extended period in certain applications. This challenge is also present in some industrial, infrastructure and maritime locations.​

Nemalux offers a version of the GS that is suitable for IP68 applications. An optically clear encapsulant creates a permanent seal. Maintaining protection against the ingress of water to a depth of up to 25'. The GS-EN model operates at full output in dry as well as submerged conditions.

GS-DC IP68 Encapsulated Spec Sheet
GS-DC IP68 Encapsulated Installation Manual

IP Ratings Definition


Bullrail-GS The Bullrail is an impact resistant protective case
designed for the GS Series LED Industrial Light. | Class I Division 2 Light | Nemalux

The Bullrail is an impact resistant protective case designed for the GS Series.

Installing light fixtures at an industrial worksite can present a set of unique challenges that can add substantial delays and costs to an existing budget. Cooperation with a manufacturer that offers additional kitting services can mitigate these risks and help with the delivery of a successful project.

The Bullrail can be made to fit the GS-2 & GS-4.


Solar-GS Solar-GS is an solar powered hazardous location LED light | Class I Division 2 Solar Light Package | Nemalux

The Solar-GS is an solar powered hazardous location LED light.

1,200 lumen package for 8ft mounting height designed for remote locations. Suitable for marine applications and available with ON/OFF or 30 minute time switch. The assembled unit has a battery backup size based on location and target hours of operation.  It ships pre-assembled with a galvanized steel pole with stainless steel mounting brackets.

Solar-GS Spec Sheet


GS Series -  Beam Profile Selection Guide  ​close up of the LEDs from the nemalux-gs-industrial-lighting-optics-page

Nemalux's GS lights are compact and durable. Designed as a hazardous location strip light, the GS is a great option for small spaces. The housing provides a full cutoff, preventing glare discomfort for operators.
