BL Product Specifications
BL light fixtures are industrial grade, lightweight, and suitable for challenging applications. Designed to replace vapor-tight fluorescent lights in industrial, marine, and hazardous locations. 7 versatile mounting options expand deployment locations for this product.
- Designed for marine, harsh, and hazardous location use.
- Lightweight replacement for conventional vapor-tight lights.
- Field serviceable light engines, power supply, and housing elements.
- Copper-free aluminum housing with polycarbonate or glass lens.
- Approved for through-wiring of multiple units on a single circuit.
- Built-in junction area for simplified termination.

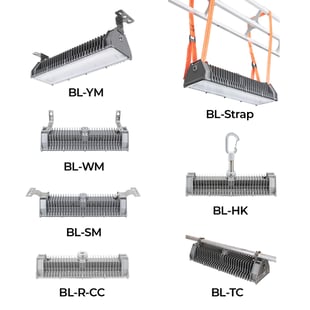

- 7 mounting options for deployment flexibility.
BL Certifications and Safety Ratings
Certified for general and marine location use under:
- UL 1598, UL 1598A, UL 8750
- CSA C22.2 No. 250.0, CSA C22.2 No. 250.13
The BL is also certified for hazardous location use under:
- UL 844
- CSA C22.2 No. 137
BL Safety Ratings:
- Class I, Division 2, Groups ABCD
- Class II, Division 2, Groups FG
- Class III
- Class I, Zone 2, Group IIC
- Zone 21*
- Zone 22
Effective Illumination for Industrial Applications
Light Fixture Performance

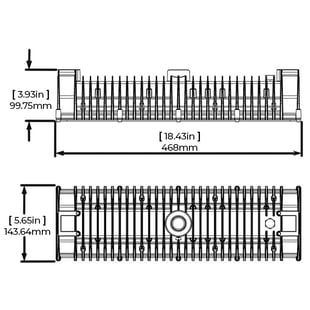

With 2,000 and 4,000-lumen options within the 18" long housing, the BL is a unique luminaire for industrial use. Born as a design for military shelters, this luminaire excels for industrial clients.
Visual Comfort and Safe Illumination
BL light engines consist of high-efficiency LEDs and aluminum circuit boards. Increasing the ambient temperature range. Internal reflectors are covering the junction area while improving the light output. The textured and impact-resistant external lens offers comfortable and glare-free lighting.
The polycarbonate lens is resistant to impacts with an integral hinge part of the fixture.
Engineered for Extreme Environments
Designed for Harsh Environments
The BL is available in a general-purpose or Class 1 Div. 2 for hazardous locations. It is a linear LED luminaire for the conventional vapor-tight category.
Protected Against the Elements
A copper-free aluminum housing and polycarbonate lens make up the standard BL case. While special order versions are available with a glass lens and stainless-steel frame. Sealed to IP66 and pressure equalized with the help of a specialty membrane. Multi-layer powder coats offer long-term survivability of the aluminum.
Simplified Installation & Operation
The BL is a lightweight LED solution compared to conventional hazardous location luminaires.
Areas of use include modular buildings and facility lighting. Asset perimeter, catwalks and platforms. Workbenches, mining equipment, and shelter lighting. Color temperature options range between 2700K and 6500K. 0-10V dimmable power supplies provide 120-277 VAC / 347 VAC input options.
Light Fixture Connection & Maintenance
Built-in junction area with three ¾” NPT entries allows for through wiring. Reducing the need for external junction boxes. Solder-free component replacements are possible with the BL. Allowing end-of-life driver, light engine, lens, and other replacements and upgrades.
BL - Encapsulated Variant
LED lights can face submersion for an extended period in certain applications. This challenge is also present in some industrial, infrastructure and maritime locations.
Nemalux offers a version of the BL that is suitable for IP68 applications. An optically clear encapsulant creates a permanent seal. Maintaining protection against the ingress of water to a depth of up to 25'. The BL-EN model operates at full output in dry as well as submerged conditions.
BL - Zone 21
The BL Series LED fixtures have been certified with a Zone 21* classification. Zone 21 is a place in which an explosive atmosphere is likely to occur in normal operation. The Nemalux luminaires can provide safe and effective lighting in industrial and hazardous locations.
*Only applies to the LC Certified Variant.
