RM Series

5,000 - 15,000 Mid Power Floodlight​

Nemalux's RM is a floodlight designed for harsh & hazardous locations use.​

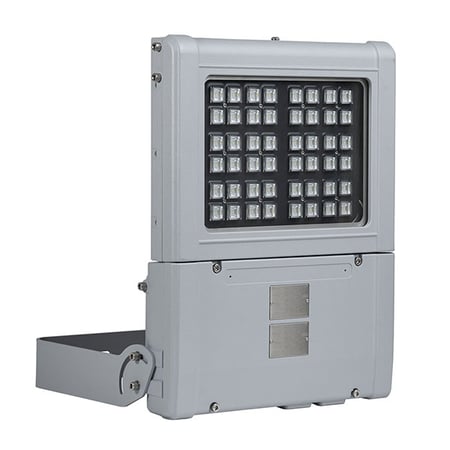

Image{width=600,height=600,url='https://22203464.fs1.hubspotusercontent-na1.net/hubfs/22203464/1-website-images/rm-series-images/600px-width/nemalux-rm-series-floodlight-a-600.jpg',altText='',fileId=null}
  • Approved for use in general, marine, & hazardous locations.
  • Input voltage options are AC: 110-277 VAC.
  • Ingress protection level is IP66/67.
  • Ambient temperature range is -40°C to +60°C.

Fixture weight excluding mounts is 13.2 kg (29.1 lbs).
Fixture dimensions excluding mounts are 17.6″ x 13.8″ x 6.5″.

RM Product Specifications

The RM Series LED Floodlight illuminates' hazardous location rated spaces. The mid-power flood uses field-proven, LED technology to ensure a projected lifetime of 10 years+. This fixture is available with outputs ranging from 5,000 to 15,000 lumens.

Features:

  • Marine grade aluminum, epoxy powder coat, toughened glass, stainless steel external fasteners and brackets.​
  • DALI 2.0 dimmable as standard for precise and flexible control of lighting assets.​
  • Output of up to 15,000 lumens, designed to replace traditional discharge light.
  • Mounting options include a yoke mount and a high bay/ceiling mount.​

RM Certifications and Safety Ratings

Certified for general, marine, and hazardous location use under:

PROTECTION/CERTIFICATION – ZONE 1/21 VARIANTS

CML21ATEX3317 or IEC Ex CML21.0037 or CML21UKEX3319​​​
II 2 GD Ex eb mb IIC T4 Gb Ex tb IIIC T90°C Db​
Ta -40°C to +60°C​​

PROTECTION/CERTIFICATION – ZONE 2/22 VARIANTS

CML21ATEX3320 or IEC Ex CML21.0038 or CML21UKEX3321​
II 3 GD Ex ec mc IIC T4 Gc Ex tc IIIC T90°C Dc​​
Ta -40°C to +60°C​

Effective Illumination for Industrial Applications

Robust & Durable

Robust and durable construction from marine grade aluminum. With a wide ambient temperature range for challenging conditions.

Built Tough

Constructed using tough, marine-grade aluminum and IP66 & IP67 ratings. The RM is designed to withstand challenging conditions.

Power & Performance

Output of up to 15,000 lumens, designed to directly replace traditional discharge light sources up to 250W.

Engineered for Extreme Environments

Multiple Beam Angles

Available with multiple beam patterns to effectively light up industrial areas. The use of secondary optics means no loss of output on wider angles.

Secondary Optics

Secondary optics are utilized to deliver a range of different beam patterns. This ensures light is targeted efficiently.

Simplified Installation & Operation

Easy to Maintain

An innovative modular design allows quick and easy on-site access and servicing of key components. ​


With the ability to mount the PSU remotely, making installation and maintenance easy.

RM Product Mount

Nemalux RM Product Dimensions

RM Product Dimensions

Nemalux RM Product Dimensions
