Nemalux LEDs deliver light precisely to target surfaces within heavy industrial environments. Combining LEDs with secondary optics provides specific beam patterns for hazardous worksites, eliminating gaps and dark spots. Inside the AR fixture, the location of the optics is behind a protective polycarbonate lens. Using the correct optics reduces installation time and cost.
The wide beam version of the AR fixture distributes light in a 360° circular pattern and has an overall beam angle of approximately 120°. It's a well-rounded option for instances without a defined need for specific illumination shapes. Some typical applications are high bay, pole top, ceiling mount, and area flood.
Illustrations of typical light levels in lux for AR30-50-WC-GY-HZ-AC mounted at a 30 feet height and 0° tilt.
The T1 optic distributes light in a narrow, symmetric pattern. The light shape is approximately 130° x 20°. Some typical applications are industrial walkways, conveyor belts, paths, aisles, and facility perimeters.

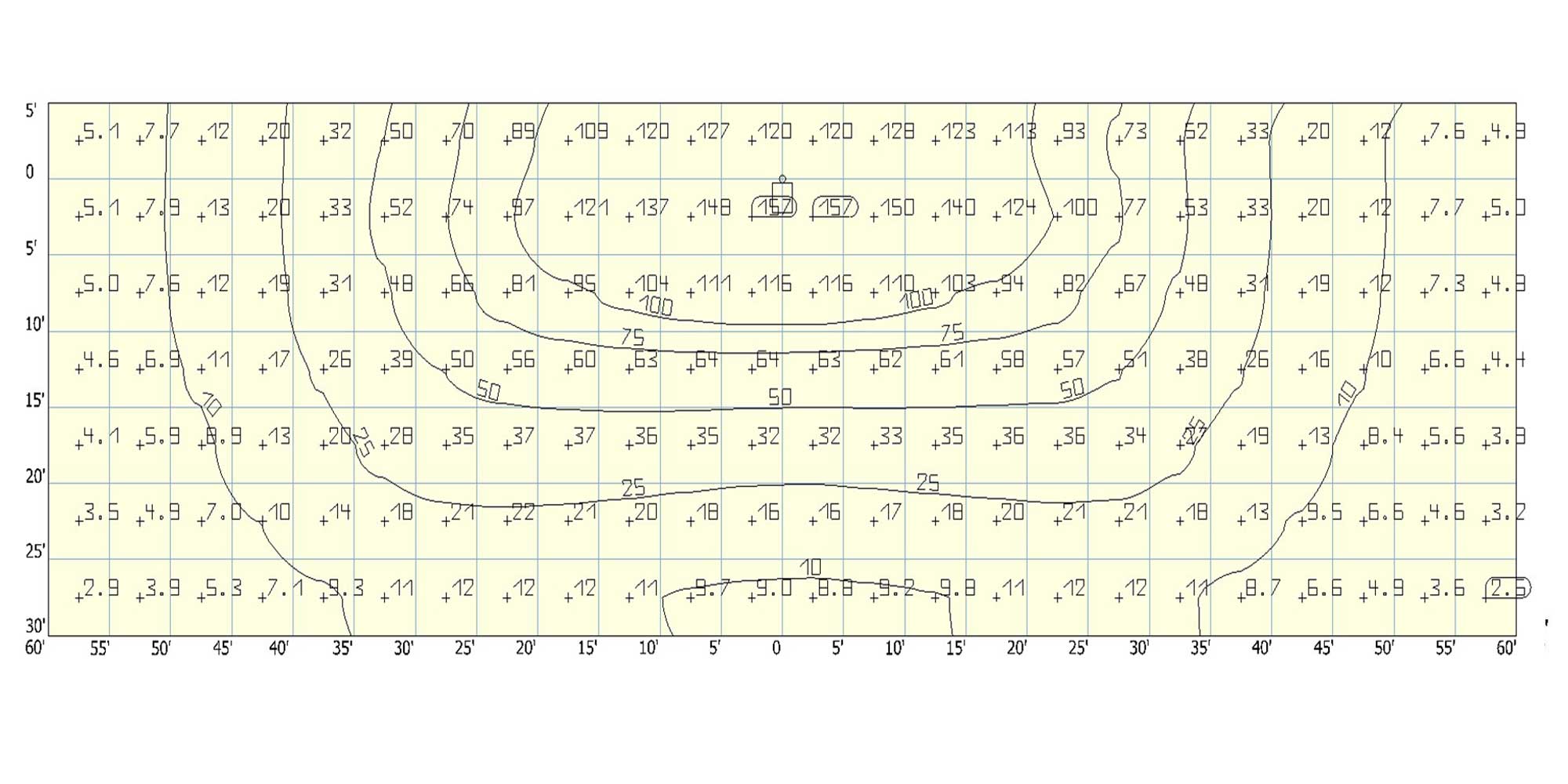

Illustrations of typical light levels in lux for AR30-50-T1-GY-HZ-AC mounted at a 30 feet height and 0° tilt.
The T2 optic distributes light in a narrow asymmetric pattern. The light shape is approximately of 135° x 25° with a 15° forward throw. Some typical applications are industrial walkways, stairs, platforms, and conveyor belts.
Illustrations of typical light levels in lux for AR30-50-T2-GY-HZ-AC mounted at a 30 feet height and 0° tilt.
The T3 optic distributes light in a wide asymmetric pattern. The light shape is approximately 135° x 50° with a 30° forward throw. Some typical applications include wall packs and perimeter high bays for industrial buildings to reduce reliance on ceiling lights on top of equipment.

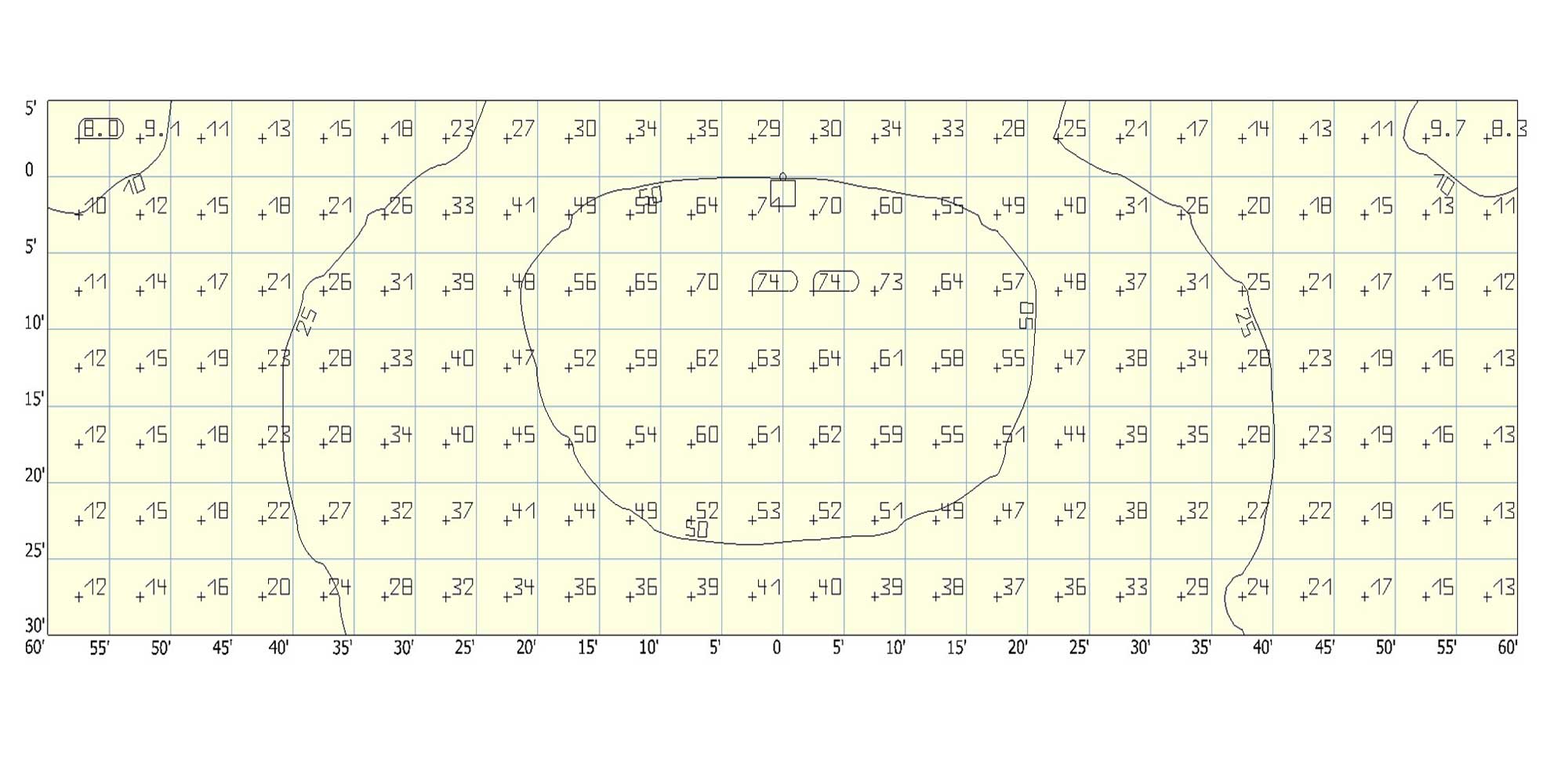

Illustrations of typical light levels in lux for AR30-50-T3-GY-HZ-AC mounted at a 30 feet height and 0° tilt.
The T4 optic distributes light in an asymmetric forward throw pattern. The light shape is approximately 100° x 40° with a 40° forward tilt. Some typical applications include wall pack or pole mount lighting with a well-defined forward throw.

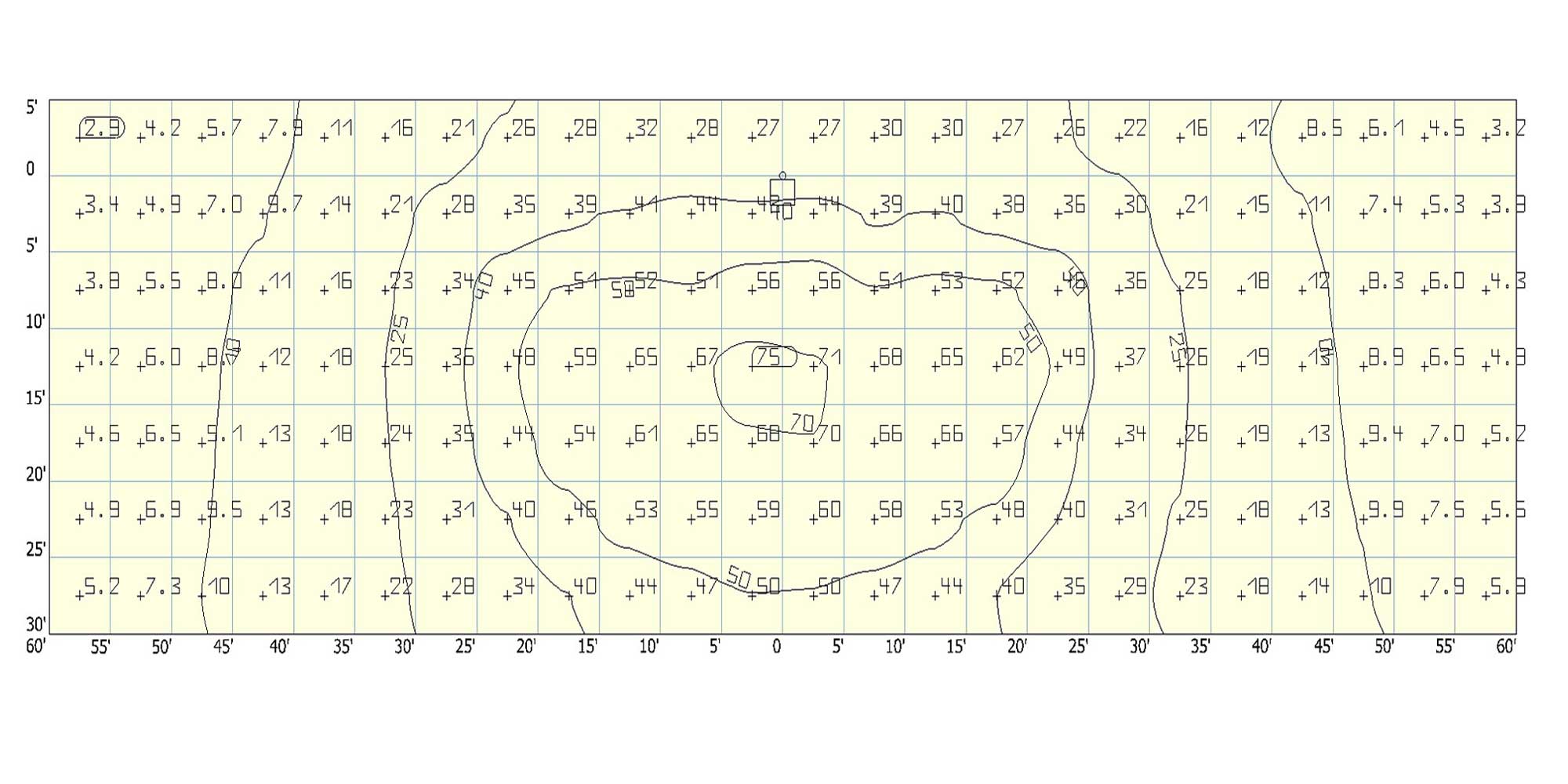

Illustrations of typical light levels in lux for AR30-50-T4-GY-HZ-AC mounted at a 30 feet height and 0° tilt.
The T5 optic distributes light in a symmetric circular pattern. The light shape produces a circular 360° distribution at a 140° beam angle, equally distributing illumination in all directions of the target area. Some typical applications are high bay, pole top, ceiling mount, and large area flood.

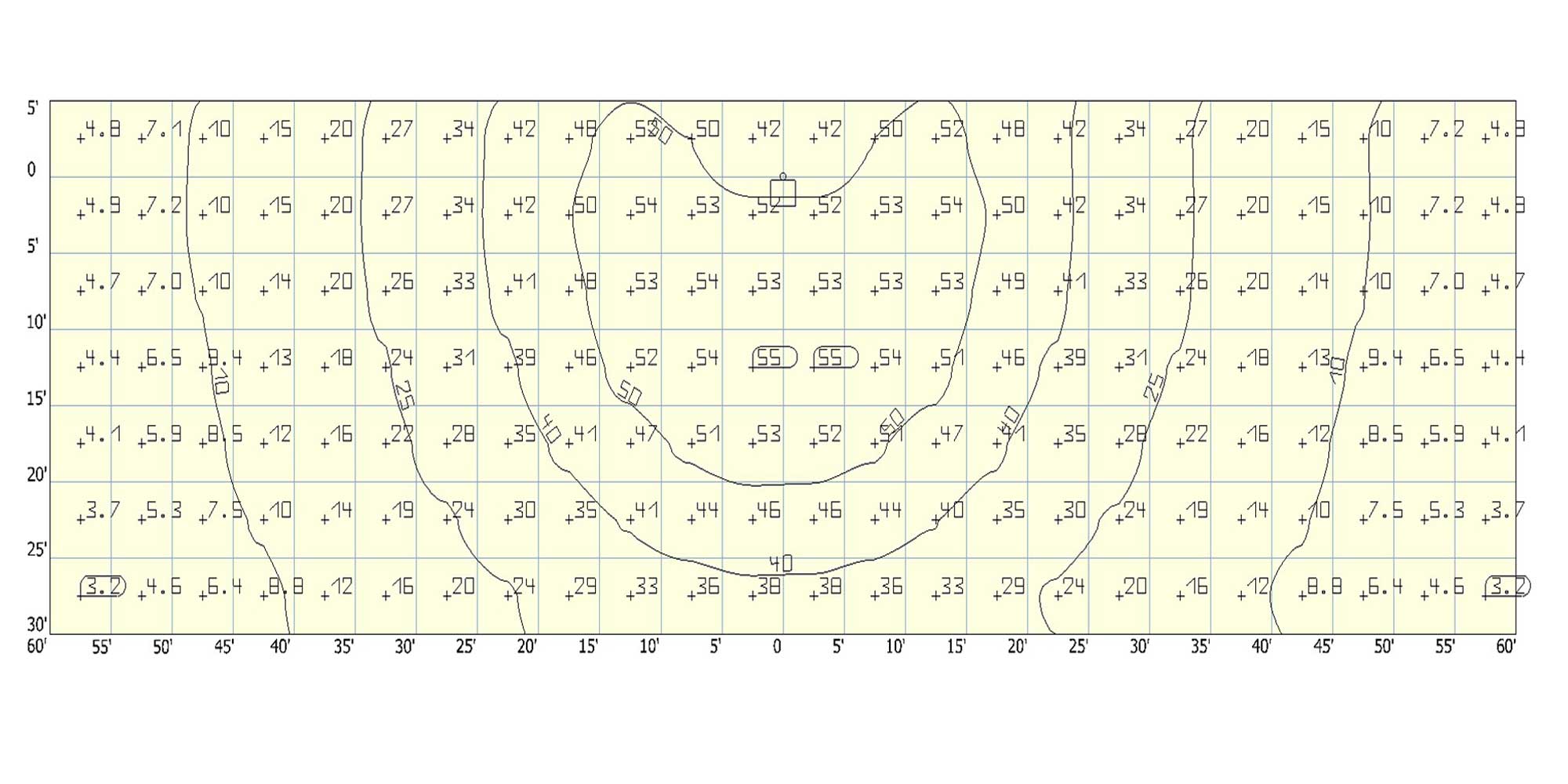

Illustrations of typical light levels in lux for AR30-50-T5-GY-HZ-AC mounted at a 30 feet height and 0° tilt.
The AR model selector displays the range of options for optics on the fixture. Please review our spec sheets for more information:
