• Approved for use in general, marine, & hazardous locations.
  • Input voltage options are 110-254 VAC or 18-69VDC.
  • Ingress protection level is IP66/67.
  • Ambient temperature range is -40°C to +60°C.

Fixture weight excluding mounts are RL-1: 6.0 kg (13.2 lbs) | RL-2: 9.0 kg (19.8 lbs).

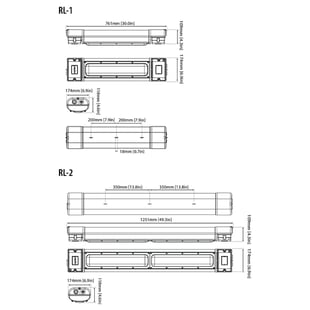

Fixture dimensions excluding mounts are RL-1: 30.0″ x 6.9″ x 4.6″ | RL-2: 49.3" x 6.9" x 4.6".

RL Product Specifications

RL linear light can replace conventional fluorescent fittings. The fixture has extreme levels of durability for long lasting use. With a Zone 1/21 & Zone 2/22, it can thrive in hazardous area installations.


  • Has the same dimensions, installation points, and cable entries as traditional fluorescent fittings. Making it an easy replacement.
  • LED and PSU modules are easily accessible for straightforward maintenance and inspection.​
  • Self-testing emergency battery providing up to 3 hours back-up.​
  • A unique modular design makes maintenance quick and easy.

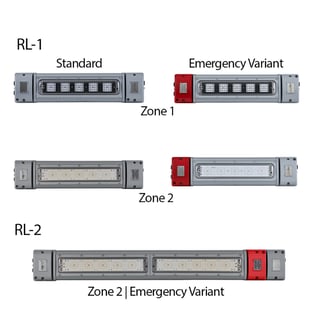

RL Certifications and Safety Ratings

Certified for general, marine, and hazardous location use under:


CML14ATEX3119 & IECExCML15.0001 & CML21UKEX3105​
Gas: II 2 G D​​
Ex eb mb IIC T4 Gb​
Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)​
Ex tb IIIC T80°C Db​
Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)​


Gas: II 3 G D​
Ex ec mc IIC T4 Gc​
Ta= -40°C to+60°C​
Ex tc IIIC T80°C Dc​
Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)​


Gas: II 2 D​
Ex tb IIIC T80°C Db​
Ta= -40°C to+60°C (-20°C to +50°C for emergency variants)​

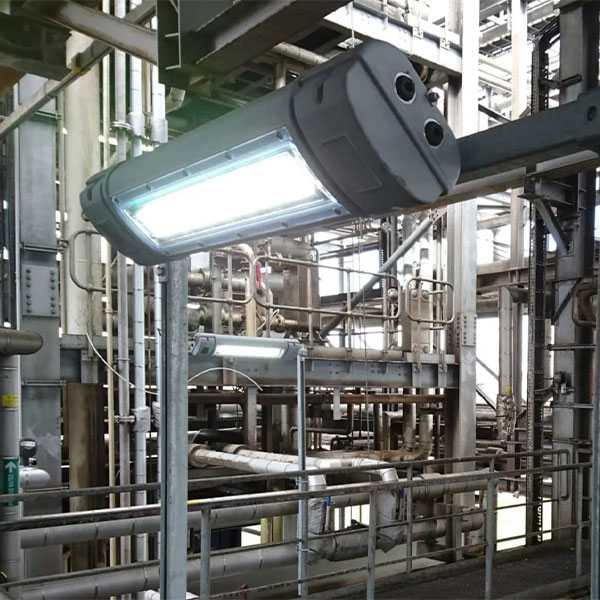

Effective Illumination for Industrial Applications

Robust & Durable

RL has marine grade aluminum with stainless steel fasteners and brackets. This linear light is IP66 and IP67 rated and can survive extreme environments.

Optimal LEDs

RL linear has been specifically designed around the LEDs with a custom housing. This ensures optimal performance and reliability.


Industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Engineered for Extreme Environments

Choice of Optics

Available with a choice of different optics to suit a wide range of applications.  Including asymmetric patterns for aisle, corridor and perimeter installations.

Intelligent Emergency

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The system self-tests the battery and communicates via a tri-colour LED indicator.

Simplified Installation & Operation

Easy Maintenance

Unique PSU modular design allows key components to be easily accessed and serviced. This makes inspection and maintenance quicker and easier.

Fully Retrofitable

Designed to replace traditional 2x18W fluorescent fittings. The RL overall dimensions, fixing centres and cable entries can match legacy fixtures.
