LED lights are a great platform to improve performance by integrating optics. This integration delivers light to target surfaces to enhance visibility. The optics on the XR also act as the protective lens. Optics maximize flexibility during the lighting design process and reduce costs during installation.
The wide beam version of the XR fixture distributes light in a 360° circular pattern and has an overall beam angle of approximately 140°. It's a well-rounded option for instances without a defined need for specific illumination shapes. Some typical applications are low bay, high bay, pole top, ceiling mount, and small area flood.

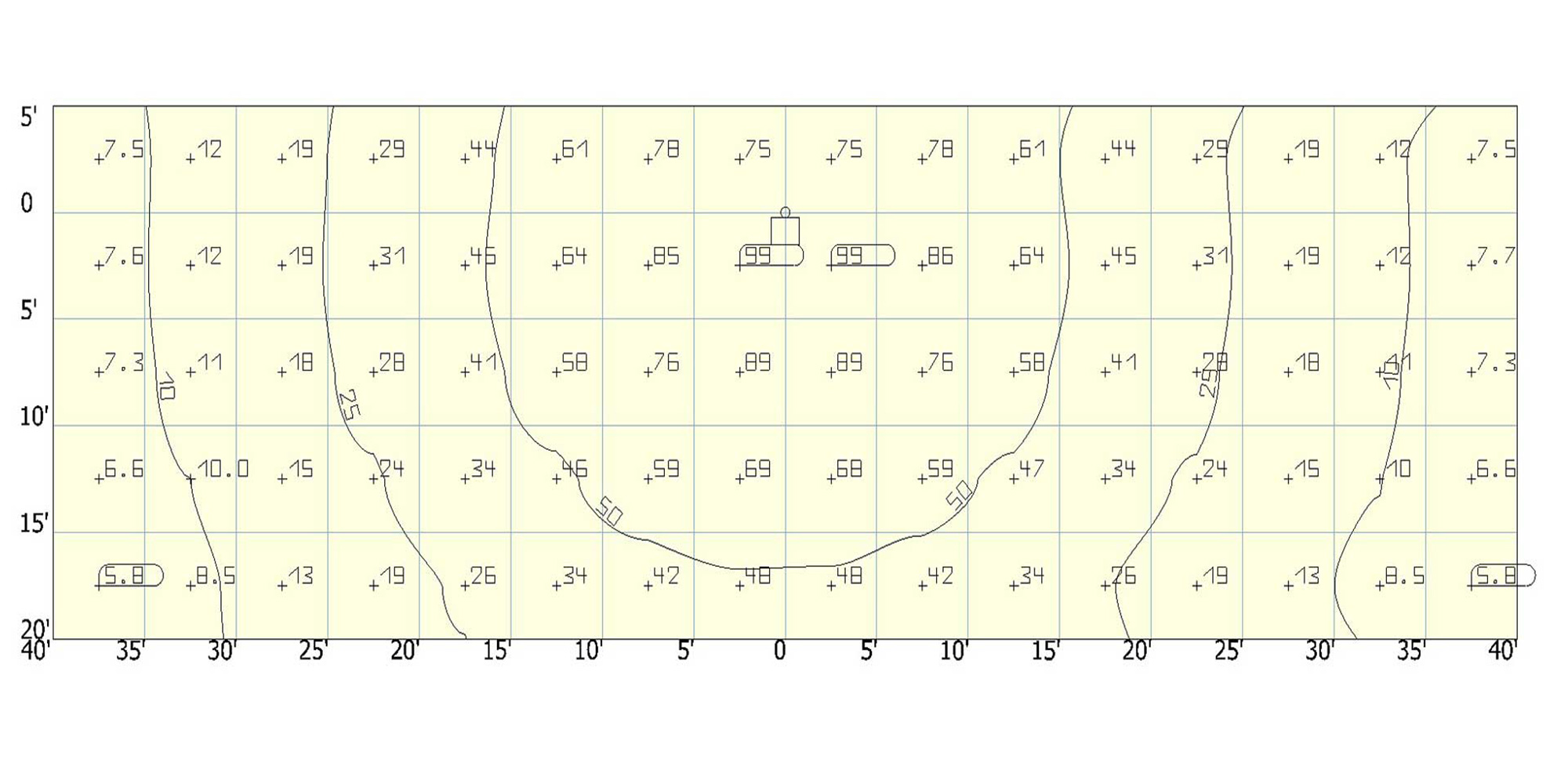

Illustrations of typical light levels in lux for XR20-50-WC-GY-HZ-AC mounted at a 25 feet height and 0° tilt.
The medium beam version of the XR fixture distributes light in a circular pattern and has an overall beam angle of approximately 60°. It's a well-rounded option for instances without a defined need for specific illumination shapes. Some typical applications are high bay, pole top, ceiling mount, and targeted area light.

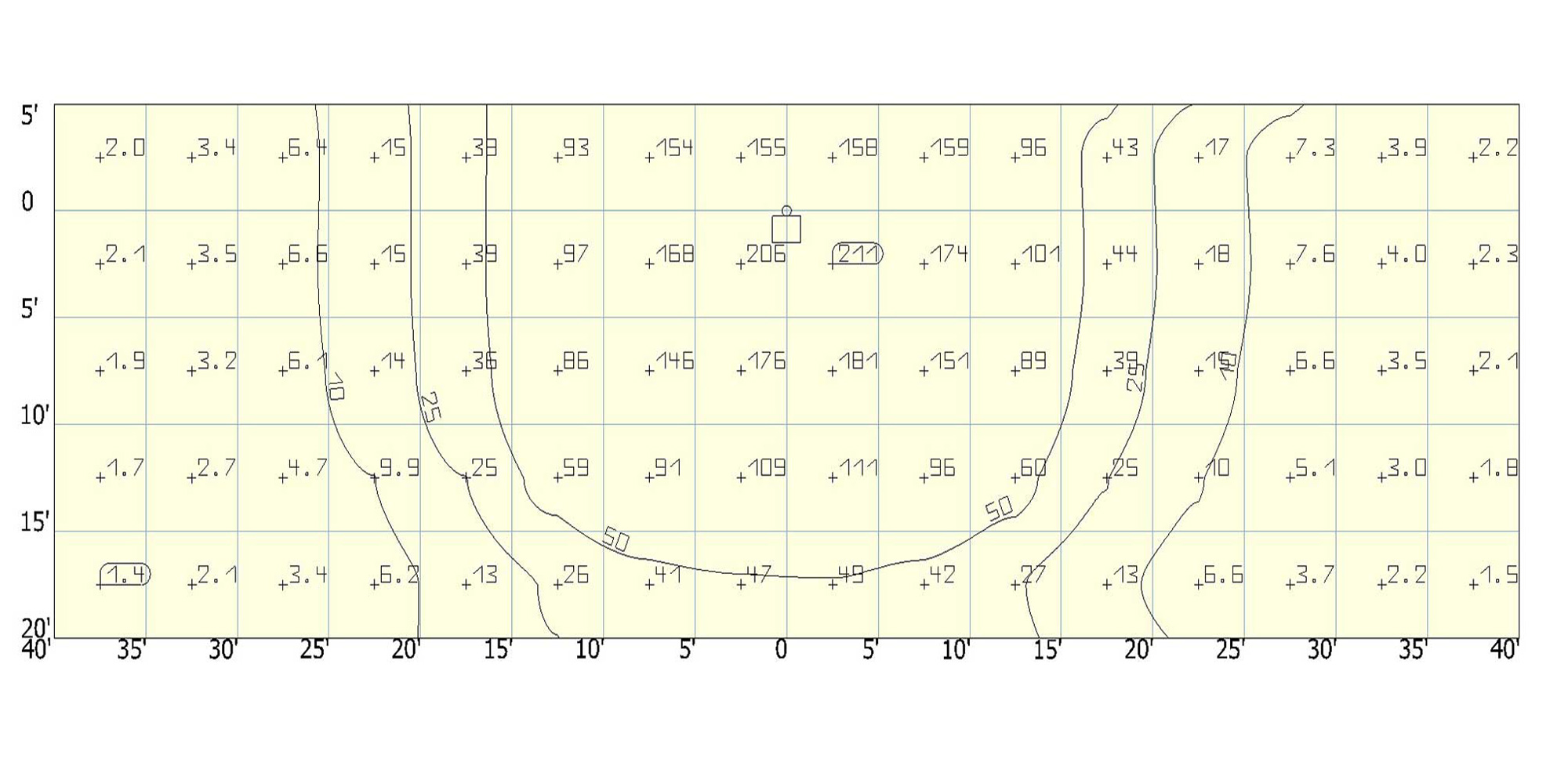

Illustrations of typical light levels in lux for XR20-50-MC-GY-HZ-AC mounted at a 25 feet height and 0° tilt.
The oval beam version of the XR fixture distributes light in an oval 30° x 115° beam angle. Some typical applications are aisle lighting, service tunnels, ceiling mount and building perimeters. The orientation of the oval optics requires using our high vibration yoke mount (XR-YK) for pole top applications.

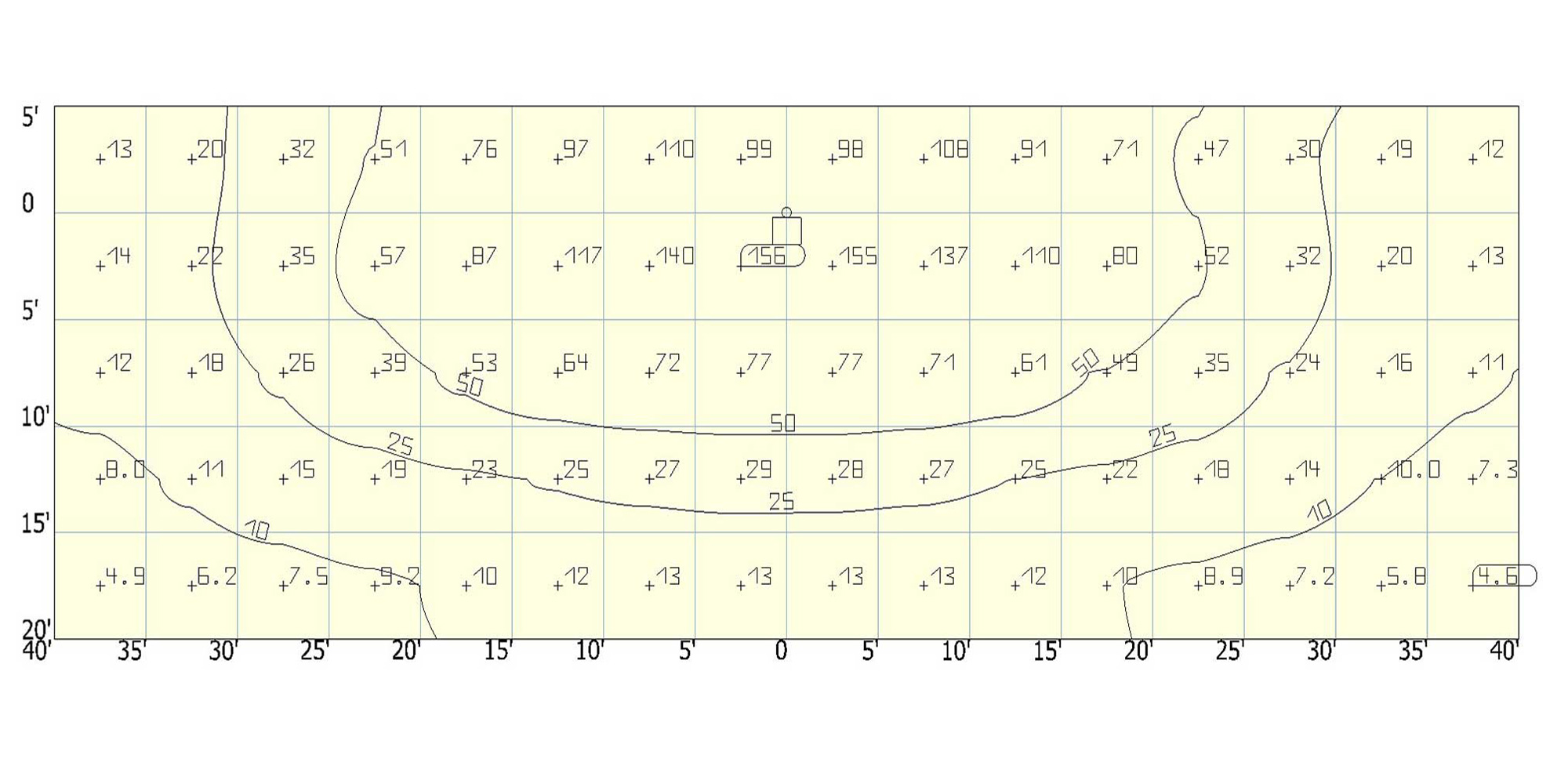

Illustrations of typical light levels in lux for XR20-50-OC-GY-HZ-AC mounted at a 25 feet height and 0° tilt.
The T2 optic distribute light in a narrow asymmetric pattern. The light beam is approximately 160° x 25° with a 15° forward kick. Some typical applications are roadway illuminations within industrial sites, walkways, stairs, platforms, and conveyor belts.

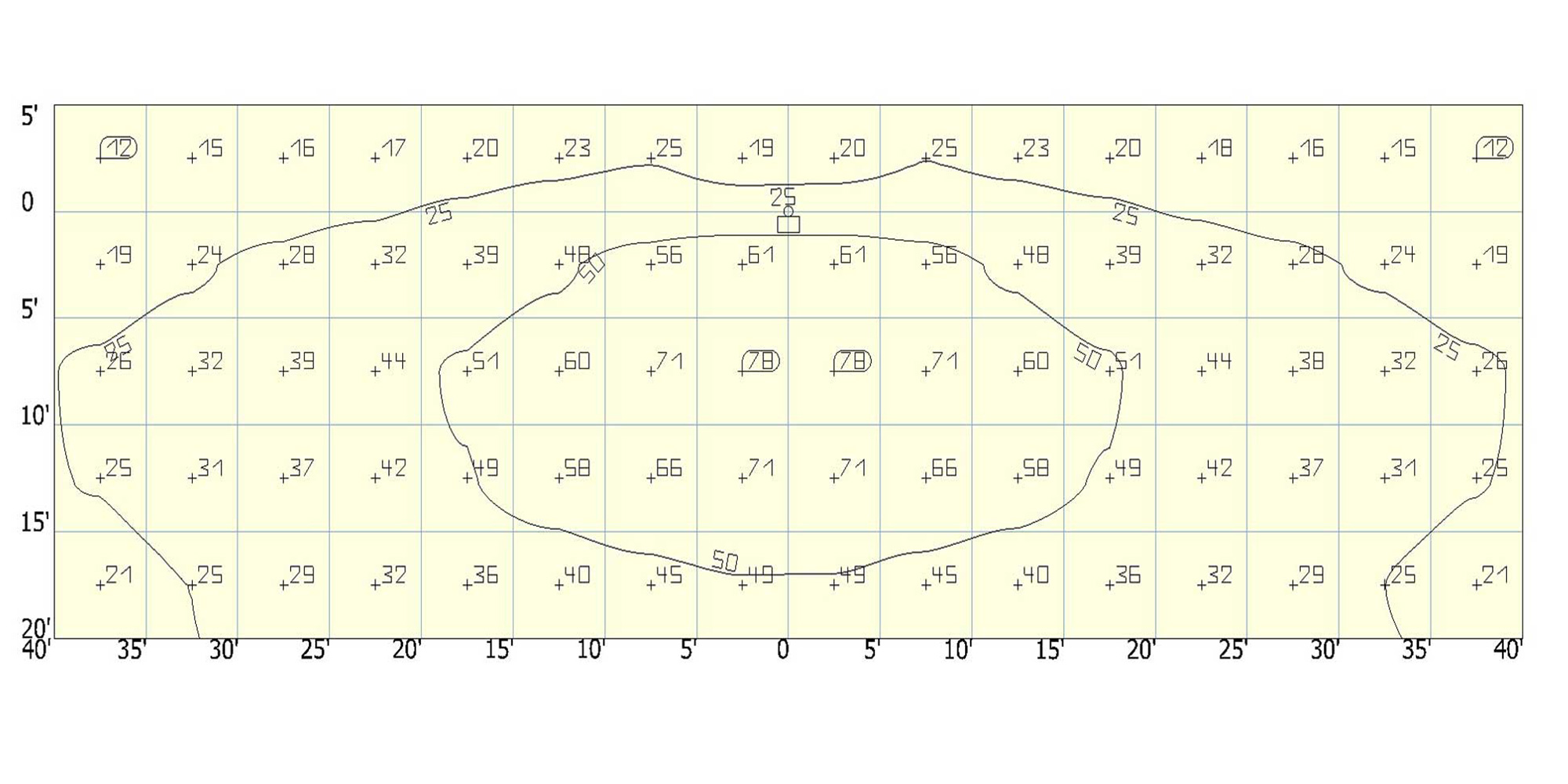

Illustrations of typical light levels in lux for XR20-50-T2-GY-HZ-AC mounted at a 25 feet height and 0° tilt.
The T3 optic distributes light in a wide asymmetric pattern. The light beam is approximately 160° x 50° with a 30° forward kick. Some typical applications include wall packs, directed pole top floodlights, and interior perimeter lights for industrial buildings to reduce reliance on high bays.

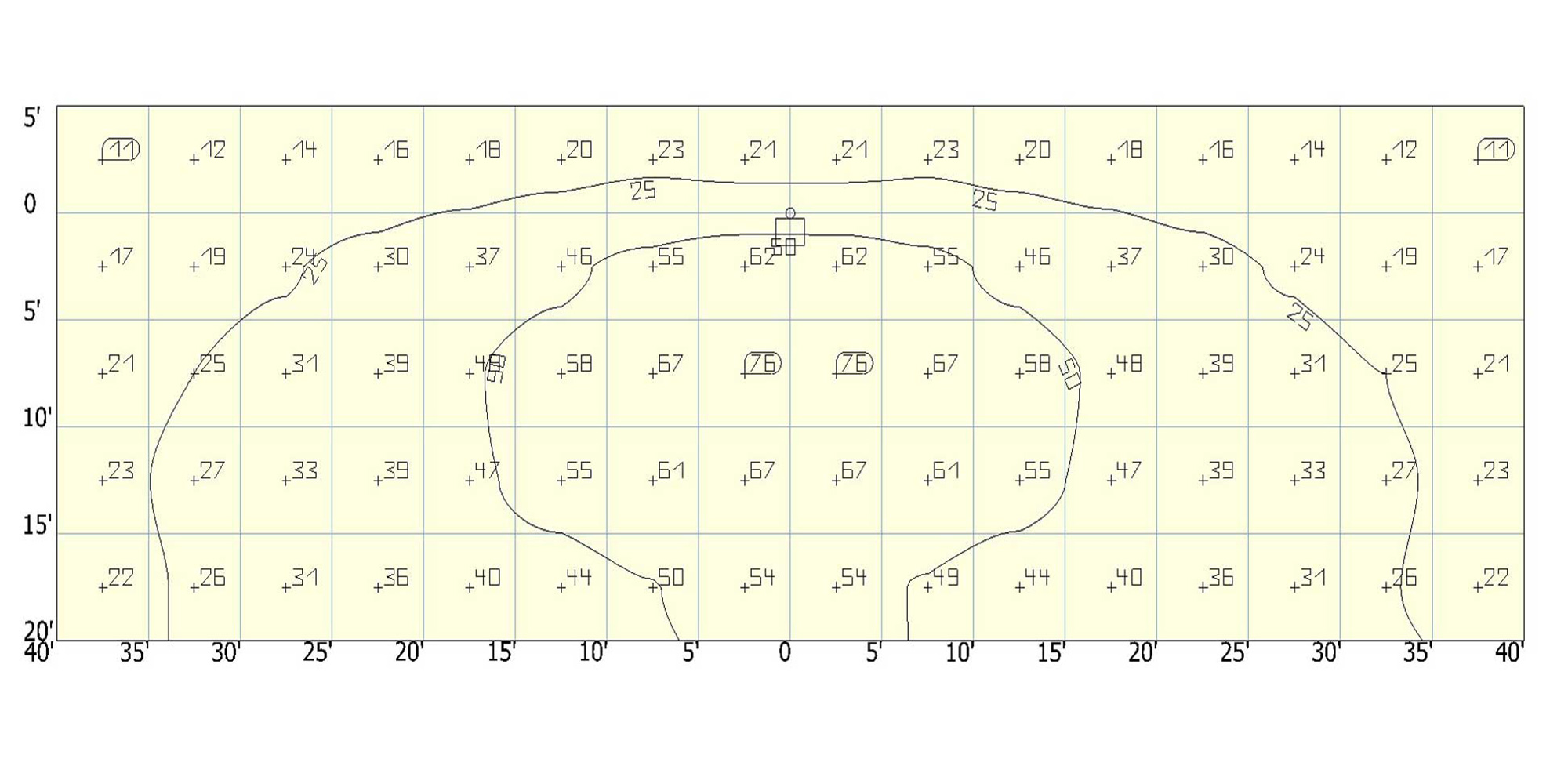

Illustrations of typical light levels in lux for XR20-50-T3-GY-HZ-AC mounted at a 25 feet height and 0° tilt.
The T5 optic distributes light in a symmetric square pattern. The beam angle is approximately 140°, equally distributing illumination in all directions from the center of the light. Some typical applications are low bay, high bay, ceiling mount, and production area, where light levels must be evenly distributed.
Illustrations of typical light levels in lux for XR20-50-VSM-GY-HZ-AC mounted at a 25 feet height and 0° tilt.
The XR model selector displays the range of options for optics on the fixture. Please review our spec sheets for more information:
