Nemalux Hazardous Location Lighting Products Video
  • Approved for use in general, marine, & hazardous locations.
  • AC Voltage options is 120 Volts AC (60 Hz) +/- 10%.
  • DC voltage options are 12 or 24 Volt DC.
  • Ingress protection level is IP66/67.
  • Ambient temperature range is -40°C to +65°C.
  • Fixture weights are: GS-1: 1.8 lbs.,  GS-2: 2.6 lbs.,  GS-3: 3.9 lbs.,  GS-4: 5.3 lbs.
  • Fixture lengths are: GS-1: 15.5 in,   GS-2: 26.5 in,  GS-3: 37.5 in,  GS-4: 48.5 in.

GS Product Specifications

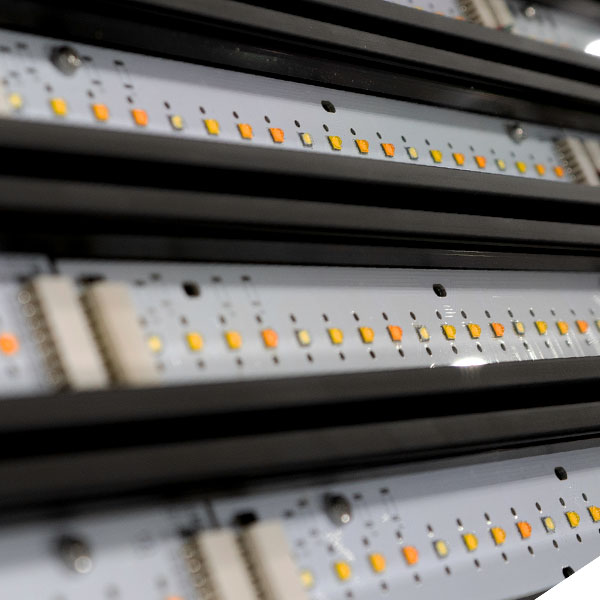

Nemalux GS lights are compact and durable. Designed as a hazardous location strip light, the GS is a great option for enclosures. All variants are factory sealed and supplied with a 3ft flying lead. Suitable for outdoor and indoor applications. Standard mounting brackets allow for 360-degree articulation. The housing provides a full cutoff preventing light from hitting the operates eyes.

Features:

  • Designed for marine, harsh, and hazardous location use.
  • Optimized thermal management with extruded aluminum housing.
  • Lightweight and low-profile housing allows for deployment for complex projects.
  • Adjustable mounting bracket allows for 360° rotation.
  • Factory-sealed housing provided with 3ft cable and cable gland.
  • Vented enclosure to prevent stress on electronics and gaskets.
  • Type II anodized housing can withstand exposure to chemicals, saltwater, and UV.

GS Certifications and Safety Ratings

GS-DC Model

  • Certified for general and marine location use under: UL 1598, UL 2108 | CSA C22.2 No. 250.0
  • Certified for hazardous location use under: UL 844, UL 1598A | CSA C22.2 No. 137
  • GS-DC Safety Ratings:  Class I, Division 2, Groups ABCD, T4* |  Class II, Division 2, Groups FG, T4*  |  Class III  |  Class I, Zone 2, Group IIC  |  Zone 22

GS-AC Model

  • Certified for general and marine location use under:  UL 1598, UL 1598A, UL 8750 | CSA C22.2 No. 250.0 & No. 250.13
  • Certified for hazardous location use under:  UL 844 | CSA C22.2 No. 137
  • GS-AC Safety Ratings:  Class I, Division 2, Groups ABCD, T4*  |  Class II, Division 2, Groups FG, T4* | Class III | Class I, Zone 2, Group IIC | Zone 22 | *T3C for simultaneous exposure rating, Class I Div. 2 & Class II, Div. 2.

Effective Illumination for Industrial Applications

Light Fixture Performance

500 – 5,000 lumen output hazardous location linear LED light fixture.

Dark Sky

The aluminum housing of the GS protrudes beyond the external lens to provide a full cut-off. Lighting target areas without the potential for undesirable glare and light pollution. Certain GS models with the surface mount bracket are dark sky (IDA) compliant.

Optimized Lighting Effect

Durable and water-tight, the GS fixtures withstand exposure to demanding environments. Designed as a hazardous location LED linear strip light, the GS is a versatile fixture.

Superior Results

With over a decade of installation history, the GS is a unique light for special applications. Areas of use include but are not limited to industrial panels and enclosures. Mining equipment as well as small service tunnels. Marine vessels and military vehicles. Drilling and exploration equipment and much more. With AC and DC input options, the GS integrates into grid-tied or remote solar-powered sites.

Engineered for Extreme Environments

Protected Against the Elements

GS's housing consists of an extruded and type II anodized copper-free aluminum alloy. While the light-emitting surface is an impact-resistant polycarbonate lens. The pressure-equalized housing is suitable for indoor and outdoor environments. Without the potential of compromising sensitive electronics.

Extended Luminaire Life

The GS maintains optimal thermal performance even with exposure to elevated ambient temperatures. Excellent thermal management with the help of a streamlined circuit board and housing design.

AC Direct and Linear DC Architecture

External or internal power supplies are not required for the GS-AC models. AC direct architecture of the internal light engine allows for 120 VAC input. High-speed cameras use GS-DC models with linear drivers and flicker-free illumination.

Simplified Installation & Operation

Installation Options

Field adjustable mounting brackets or carriage bolt surface mounts offer flexible deployment options. Standard brackets allow for easy field adjustable 360° rotation. The GS provides a long-term solution for linear strip lighting applications.

Implementation Areas

Areas of use include but are not limited to industrial panels and enclosures. Mining equipment as well as small service tunnels. Marine vessels and walkway bull rail lights. Military vehicles and aerospace test equipment. Drilling and exploration equipment and much more.
